[TUT] Flash Stock Boot.img of Any MTK Android Device Through SP Flash Tool {Easiest Method}

Hey peeps, Today we will be learning about How to Flash the stock Boot.img to your mediatek Android Phone using SP Flash tools. Android System files are really vulnerable to get messed when you have root access, As Root gives full control to you there are chances that you mess up with any system file unknowingly. But in android its also easy to fix these problems, And our today's tutorial will be useful for those who have messed up with Boot.img File of Android Phone.

Note: Boot.img Files are not easy to mess with, Don't think that if your Phone is Not booting up then the problem is in Boot.img. Actually only Android Developers are vulnerable to get this error ( As they play around messing different files knowingly that they are of Boot.img files).

So without wasting further time lets look into how to flash boot.img in Android using SP Tool.

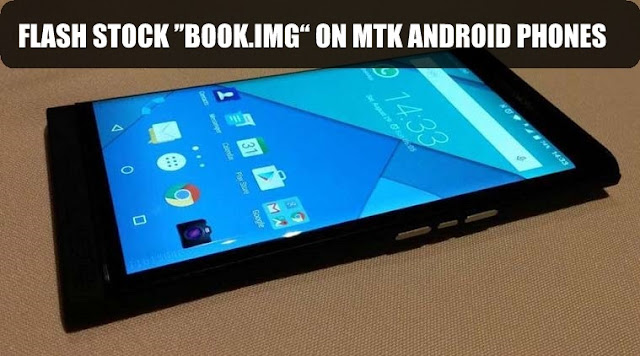

flash stock boot.img image of any MTK android phone with SP flash tool

Steps To Flash Stock Boot.img in MTK Android


  • SP Flash tool
  • Stock Firmware for your Mediatek Android Device : (You can get it by searching on Google)
  • Data cable
  • Android Phone
  • PDAnet Installed (It installs AMD drivers)


STEP 1: Install the USB Drivers, And PDAnet Drivers in your PC.

STEP 2: Open SP Tools, And click on "Scatter Loader" And Browse and select the scatter file of your Stock ROM.

STEP 3: After loading the scatter file, You will see many Options which needs to be installed in your Phone from Stock rom - Like "recovery.img" , "System" etc. From these Untick Everything, and now just tick (select) "Boot.img" from the option.

STEP 4: Click on "Download" Option from the top Bar. Now a process will load and complete

STEP 5: Now Remove the Battery of your phone, and Keep Hold of the Volume up Button, and connect your phone with your PC using Data Cable of your phone, And after connecting release the Volume Up button.

STEP 6: If no process Is been done, then try pressing the volume up button Again, And still if nothing is happening, then Insert your battery and again press the volume up button.

STEP 7: If everything is right, then a process will start, and the progress of Process will be shown in Bottom Bar of SP Flash tool. Keep waiting until its finished.

STEP 8: After successfully Flashing Boot.img A Green Ring will be shown. Now remove your mobile from cable, and insert battery and Switch on your phone. Thats it Now you have flashed the Stock Boot.img of your Android phone.

Also Read List of SP Flash tools Errors, And their Solutions

So friends Hope that the process was pretty Simple. Now you can flash The boot.img of your Phone Without any fear of losing your phone. And If you face any problem, just comment it down below. We will try to help you. And Don't forget to share it on your Social Media Profiles.
